Agentic architecture is the structural framework, covering both design and function, that allows AI agents to perceive their environment, reason about goals, and take action. It defines the components an agent is built from (a reasoning model, memory, tools, and guardrails), how they connect, and how one or many agents coordinate to finish a task.

Most conversations about AI focus on what agents can do. Far fewer explain how they are built. That structure decides how reliable an agent is, how well it scales, what it can access, and how much you can trust it. This guide covers the core components, the main types and patterns, the design principles behind dependable agents, and how to choose the right architecture for your use case.

Build Your AI Agents at Breakfast and Start Seeing Results by Lunch

With Astera, designing, building, and deploying high-impact, powerful AI agents is as easy as it gets. Use our visual designer, drag-and-drop objects, and pre-built templates, and have AI agents built using your business data ready to go within hours.

Build Scalable AI Agents—Faster, Smarter, and Without the Guesswork

Want AI agents without weeks of coding or complex setup? Skip the technical hurdles. Astera AI Agent Builder gives you a drag-and-drop interface, powerful integrations, and enterprise-ready performance. No data science degree required.

Learn More
CTA Illustration

What is agentic architecture?

Agentic architecture is the blueprint for an AI agent. Where a traditional program follows fixed steps, an agent is given a goal and works out the steps itself. It observes inputs, decides what to do, acts through tools, checks the result, and repeats until the goal is met or it needs help.

Early AI agents were rule-based: a developer wrote every condition by hand. Modern agents add machine learning and large language models (LLMs) for flexible reasoning, and often keep rules in place where predictable behavior matters. This is why most production designs are hybrid. A fraud detection system, for example, can use rules to enforce hard policies while a learned model spots unusual patterns the rules would miss.

Agentic architecture is related to, but different from, a few terms you may see:

Core components of agentic architecture

An agentic architecture combines eight components. Not every agent needs all of them at full strength, but each plays a distinct role.

1. Perception

The perception layer takes in data from the environment and turns it into something the agent can use. Inputs can be user messages, documents, database records, system events, or sensor data such as camera and microphone feeds. Techniques such as natural language processing and computer vision interpret raw input.

2. Reasoning and planning

This is the decision-making core. In modern agents it is usually an LLM that interprets the goal, breaks it into steps, and chooses the next action. It may combine logical rules, probabilistic models, and heuristics, and it draws on memory and knowledge bases to make better choices.

3. Memory and knowledge

Memory keeps an agent coherent across steps and sessions. It stores past interactions, learned experience, and predefined rules. Memory can be symbolic, such as ontologies and databases, or neural, such as vector embeddings that allow retrieval by meaning.

4. Tools and action

The action layer carries out decisions. It can send a response, run a system command, call an API, query a database, or control a physical device. Giving an agent tools is what lets it do real work instead of only generating text. Control mechanisms and execution frameworks keep these actions efficient and consistent.

5. Learning and feedback

Learning lets an agent improve. Common approaches include:

  • Supervised learning: training on labeled data, for tasks like image recognition and spam detection.

  • Unsupervised learning: finding structure in unlabeled data, for clustering and anomaly detection.

  • Reinforcement learning: improving through trial and error, used in robotics and game-playing.

Feedback loops let the agent refine its behavior in real time or in batches.

6. Communication interface

The communication interface lets the agent interact with users, other systems, and other agents. It relies on APIs, natural language, and standardized protocols so that components from different vendors can work together.

7. Orchestration

Orchestration coordinates the work. It manages the order of steps, passes information between components, routes tasks between agents, and handles retries and failures. In multi-agent systems, the orchestrator decides which agent handles what.

8. Guardrails and governance

Guardrails keep an agent’s actions within safe limits. They include permissions that restrict what the agent can access, validation of inputs and outputs, human approval steps, rate and spend limits, and audit logs. For enterprise use, this layer is not optional.

Types of agentic architectures

Agent architectures fall into four broad types. Each balances speed, intelligence, and complexity differently.

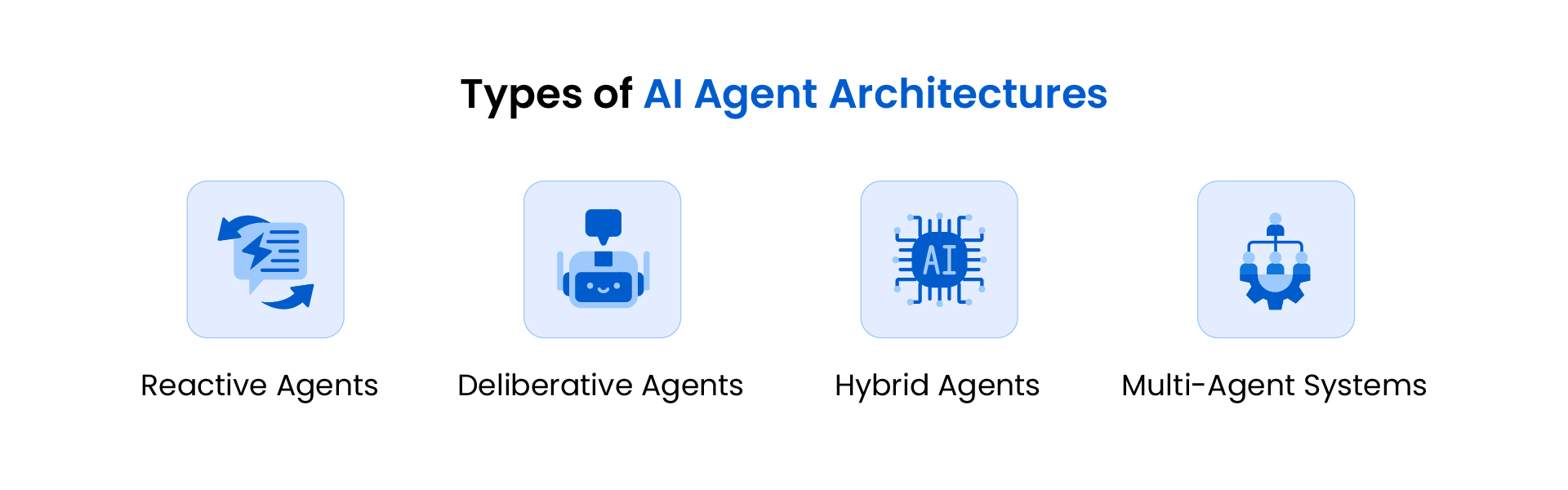

Types of AI Agent Architectures
The four types of AI Agent Architectures, including reactive agents, deliberative agents, hybrid agents, multi-agent systems.

Four types of AI agent architectures: reactive, deliberative, hybrid and multi-agent systems

Reactive agents

Reactive agents follow a stimulus-response model. They have no internal memory and do not learn. They are fast and efficient but cannot plan ahead. A classic example is an email spam filter.

Deliberative agents

Deliberative agents hold an internal model of their environment, which lets them reason and plan. They suit complex tasks that need foresight, such as autonomous vehicles.

Hybrid agents

Hybrid agents combine reactive and deliberative behavior, responding quickly while still planning. Virtual assistants such as Siri, Alexa, and Google Assistant are common examples.

Multi-agent systems

Multi-agent systems use several AI programs that cooperate or compete. They are most useful in highly complex domains, such as traffic control.

Architecture type

Key characteristics

Strengths

Limitations

Example use cases

Reactive

Respond to inputs without memory or planning

Fast response, simple design

No adaptability or long-term learning

Spam filters, robot vacuum cleaners

Deliberative

Use an environment model to plan actions

Can reason and make informed decisions

Slower, because planning takes computation

Autonomous vehicles, decision support

Hybrid

Combine reactive and deliberative behavior

Balances speed and decision quality

More complex to design and maintain

Virtual assistants

Multi-agent

Agents collaborate or compete to solve problems

Distributed intelligence, collaboration

Coordination and communication overhead

Traffic management, drone swarms

Agentic architecture patterns

Beyond the four types, a handful of patterns describe how agents are organized in practice.

Single-agent pattern

One agent with access to a model, tools, and memory handles the whole task. It is the simplest design and the right starting point for narrow, well-defined jobs, such as answering questions from a knowledge base or processing one type of document.

Reason-act-observe loop

Many single agents work in a loop: reason about the goal, act through a tool, observe the result, and reason again. The loop continues until the task is done. Some agents plan the full sequence first and then execute it; others plan one step at a time and adjust as they learn. Planning first gives more predictable behavior; step-by-step adapts better to surprises.

Supervisor and worker pattern

A supervisor agent breaks a goal into sub-tasks and delegates them to specialist worker agents, then combines the results. This hierarchical approach fits complex, multi-step workflows because each worker can focus on one skill, such as extraction, validation, or reporting.

Peer-to-peer pattern

In a peer-to-peer design, agents communicate directly and negotiate who does what. It is flexible and resilient but harder to control, so it needs strong coordination rules and logging.

Human-in-the-loop and human-on-the-loop

Human-in-the-loop designs pause the agent for human approval at critical decision points. Human-on-the-loop designs let the agent run independently while a person monitors and can step in. Either can be layered onto any pattern above.

The model underneath: transformers and foundation models

transformer architecture, introduced in the 2017 paper “Attention Is All You Need”, is what most modern reasoning engines are built on. Transformers handle long sequences of information well, which is why LLMs can keep track of a conversation. Foundation models are large models trained on broad data and then adapted to specific tasks through prompt engineering, fine-tuning, or lightweight methods such as low-rank adaptation (LoRA). This separates general knowledge from task-specific customization, so one model can power many different agents.

Design principles for agentic architecture

Seven principles separate prototypes from dependable systems.

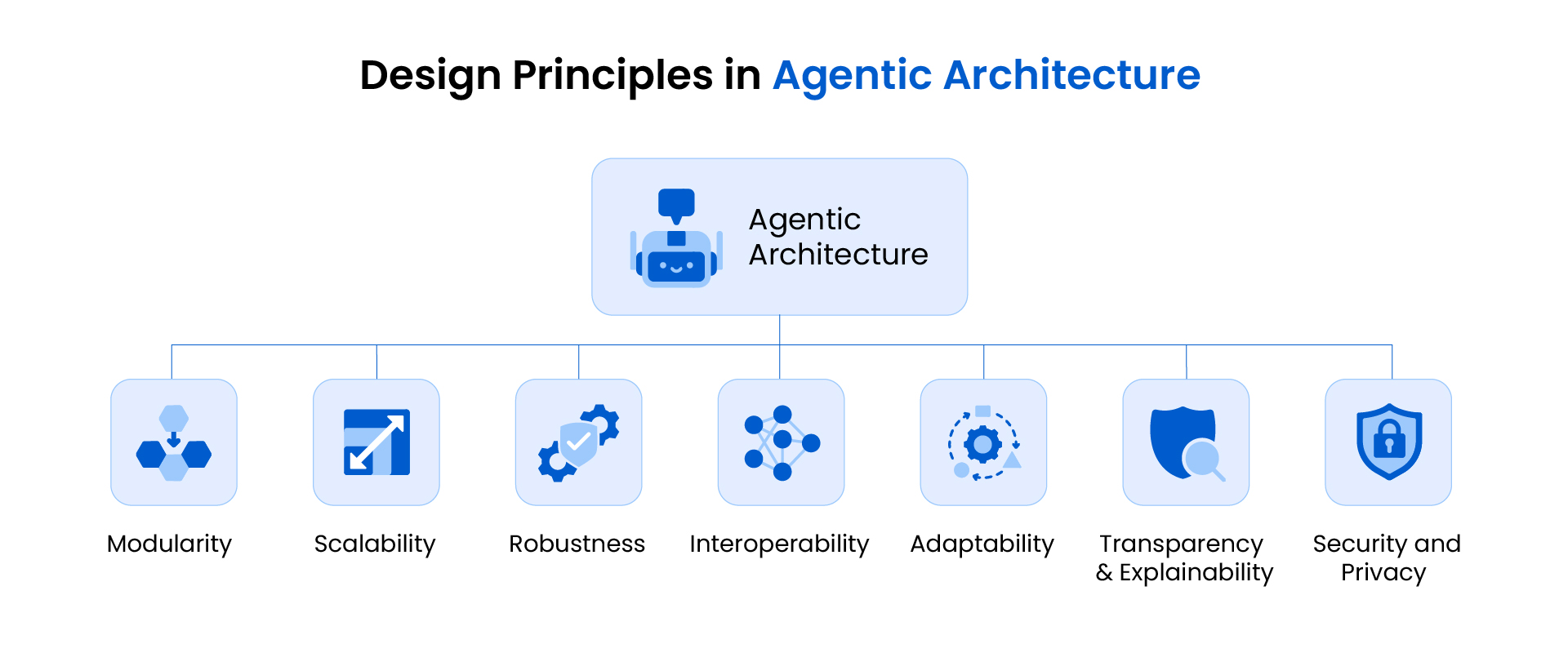

Agentic Architecture Design Principles
The 7 key design principles in agentic architecture, ranging from modularity and scalability to security and privacy

Design principles in agentic architecture: modularity, scalability, robustness, interoperability, adaptability, transparency and security

  1. Modularity. Break the agent into distinct modules for perception, reasoning, memory, and action. Teams can develop, test, and reuse each part independently.

  2. Scalability. Plan for growth in data volume, users, and task complexity, using distributed processing and efficient data structures.

  3. Robustness. Expect errors and unpredictable inputs. Use redundancy, error detection and recovery, and graceful degradation so one failure does not stop everything.

  4. Interoperability. Use standard protocols, well-defined interfaces, and common data formats so agents can work with other agents and external systems. Open standards such as the Model Context Protocol (MCP) for connecting agents to tools and data, and agent-to-agent protocols, help here.

  5. Adaptability. Let the agent adjust to new data and environments while staying stable. Incremental learning should not erase what the agent already knows.

  6. Transparency and explainability. Make decisions understandable through interpretable models, logging, and visualization of decision paths. This builds user trust and supports audits.

  7. Security and privacy. Protect sensitive data without hurting performance. Techniques include least-privilege access, federated learning (learning from decentralized data without moving it) and differential privacy (adding controlled noise to datasets).

Agentic architecture in practice

The right design depends on the application.

Robotics and embodied AI

Robots need perception, planning, and control working together in the physical world. These systems often use a hierarchical design, with components operating at different time scales. A self-driving system, for example, uses perception networks to identify objects and predict movement, planning systems to compute safe routes, and control mechanisms to execute them precisely, with safeguards built in.

Conversational AI

Conversational agents must stay coherent across long interactions while adapting to shifting user intent. Key techniques include:

  • Retrieval-augmented generation (RAG): combines information retrieval with generative AI so answers are grounded in your data.

  • Reinforcement learning from human feedback (RLHF): refines responses to match user expectations.

  • State tracking: keeps conversation context using structured variables, neural activations, or prompt-based memory.

Autonomous systems

Systems that act without human oversight need an explicit safety focus. An autonomous trading agent, for example, may use machine learning models to generate strategies, rule-based systems to enforce regulatory compliance, and circuit breakers to halt trading during extreme volatility. The challenge is balancing adaptability with hard safety limits.

Enterprise data management

Agentic architecture is also changing how organizations manage data. Instead of building every pipeline by hand, teams can state requirements in plain English and let specialized agents handle the work, for example an orchestrator that schedules ingestion, specialists that transform and enrich records, a trust agent that validates and deduplicates data, and an operations agent that watches performance. Learn how this works in the Astera Agentic Data Stack.

Your Enterprise-Grade AI Agents Are Just Hours Away

With Astera, building AI agents of your own has never been easier. Use our visual, drag-and-drop builder and array of pre-built functions to develop and deploy AI agents for a variety of use cases.

You've Read About AI Agents. Now It's Time to Build Your Own.

Astera simplifies AI agent development for business and technical users alike. With our visual, drag-and-drop builder and ready-to-use templates, AI agents of your own are just a few easy steps away.

Let's Get Started
CTA Illustration

How to choose the right architecture

Match the architecture to the task, the risk, and the amount of coordination required.

If your task is...

Start with

Why

Narrow and well defined, such as answering FAQs or extracting fields from a document

Single agent

Simplest to build, test, and monitor

Fast and rule-driven, with no need to plan

Reactive agent

Low latency and predictable

Complex, multi-step, with several skills involved

Supervisor and workers

Specialization and clear task delegation

Open-ended, with agents that must negotiate

Peer-to-peer

Flexible collaboration, but needs strong controls

High-stakes, such as payments, health, or compliance

Any pattern plus human-in-the-loop

Human approval where mistakes are costly

Start with the simplest design that meets the need. Add agents, tools, and autonomy only when the task demands them, and add guardrails and monitoring before you give an agent access to production systems.

Emerging trends in agentic architecture

  • LLM integration. LLMs act as the semantic engine of the agent, handling language understanding, planning, and generation. Research-style agents can now explore the web on their own and compile detailed reports.

  • Autonomous tool use. Agents choose and call external tools and APIs themselves, from browsing the web to completing multi-step online tasks. Standards like MCP make connecting tools easier.

  • Hierarchical planning. Agents decompose complex goals into smaller sub-tasks. Game-playing systems such as AlphaGo showed the value of planning with Monte Carlo Tree Search (MCTS).

  • Stronger reasoning. Work continues on better reasoning and planning, including applications in areas such as cybersecurity operations.

  • Multi-agent collaboration. Architectures that let many agents communicate in natural language are gaining ground. See this survey on multi-agent systems for a research overview.

  • Causal reasoning and world models. Agents are building internal models that predict the outcome of actions, so they can evaluate scenarios and understand cause and effect before acting.

  • Governance and observability. As agents take on more work, tracing, evaluation, permissions, and audit trails are becoming standard parts of the architecture.

Conclusion

Agentic architecture is more than a technical detail. It determines what an AI agent can do, where it can fail, and how far you can trust it. Choose the simplest pattern that fits the task, build on modular components, and treat guardrails, transparency, and security as core design requirements from the start. The goal is agents that are not just capable, but aligned with human needs and values.
